Wharfedale Pro Audio

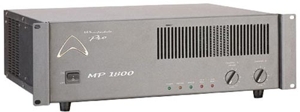

MP POWER AMPLIFIERS
MP 1200 RRP $1169
MP 1800 RRP $1369
MP 2800 RRP $1869
The new MP Series of power amplifiers, from Wharfedale Professional, are the latest addition to the expanding range of Wharfedale Professional electronics products. Built to last, the MP amplifiers are designed to withstand the rigours of life on the road as well as the challenges of
professional installation environments. Sonic accuracy and durability are the most important
features of a power amplifier. The rugged MP Series amplifiers feature a hefty, all-steel chassis along with state of the art electronic components, all housed within a unique amplifier design that provides high power and clean signal reproduction in a variety of applications. Each amplifier is tested individually as a part of our factory’s rigorous Quality Control program that ensures the reliability and stability that is expected of products with the Wharfedale Professional name.
Features
• Toroidal transfomer
• Rear panel ground lift switch
• Class AB Topology (MP1200 &1800)
• Class H Topology (MP2800)
• All steel construction
• Continuously variable speed fan
• Sophisticated protection circuitry including; Soft start
protection relay; Thermal overload protection; Short circuit
protection; Open circuit protection
• Front controls including: Power Switch, Channel A and
Channel B gain controls
• Front panel LED indicators for Power On, Peak, Protect
• Stereo/Bridge Mode switch on rear of unit * Watts per channel @ 1kHz, 0.1% THD
The MP Series power amplifiers feature a continuously variable speed fan for optimum cooling. The airflow generated by the fan flows over the copper plated heatsink resulting in efficient heat dissipation, keeping the output devices evenly cooled. The MP Series amplifiers also feature sophisticated protection circuitry. When engaged, the thermal overload protection mutes the input signal when unsafe operating temperatures are detected. The short circuit protection keeps the output devices operating within safe parameters when short circuits are detected and the amplifiers also feature “Soft Start Protection” to protect speakers from unwanted ‘pops’ when power is switched on or off.
The MP Series amplifiers feature the option of binding posts or Speakon™ output connectors. Input connections are made via 1/4” (6.3mm) TRS, balanced phone jacks as well as balanced XLR connectors. Comprehensive front panel LED indicators for performance monitoring include POWER, PROTECT and BRIDGE as well as PEAK level indicators for Channel A and Channel B. The channel gain control knobs and power switch are situated on the front panel for easy access.
|
POWER: PER CHANNEL (0.1% THD) |
|
||
|
8 OHMS |
260 Watts |
330 Watts |
800 Watts |
|
4 OHMS |
400 Watts |
600 Watts |
1400 Watts |
|
2 OHMS |
640 Watts |
900 Watts |
1500 Watts |
|
BRIDGED MONO MODE: |
|
|
|
|
8 OHMS |
800 Watts |
1200 Watts |
2800 Watts |
|
4 OHMS |
1280 Watts |
1800 Watts |
3000 Watts |
|
INPUT SENSITIVITY: |
|
|
|
|
AT 4 OHMS |
0.775v |
0.775v |
0.775v |
|
UNBALANCED 1/4” JACK |
10Kohms |
10Kohms |
10Kohms |
|
BALANCED XLR |
20Kohms |
20Kohms |
20Kohms |
|
VOLTAGE GAIN |
35dB |
36dB |
38dB |
|
SLEW RATE: 8 FULL SWING |
|
|
|
|
STEREO |
>30v/u sec |
>30v/u sec |
>40v/u sec |
|
BRIDGED MONO MODE |
>50v/u sec |
>50v/u sec |
|
|
CHANNEL SEPARATION |
76dB |
76dB |
78dB |
|
SIGNAL TO NOISE (20Hz-20kHz) |
100dB |
100dB |
100dB |
|
DISTORTION (SMPTE-1M) |
less than 0.05% |
less than 0.05% |
less than 0.05% |
|
FREQUENCY RESPONSE: |
|
|
|
|
+/-1dB @ 4 OHMS |
0Hz to 20kHz |
20Hz to 20kHz |
20Hz to 20kHz |
|
+/-3dB @ 4 OHMS |
5Hz to 50kHz |
5Hz to 50kHz |
5Hz to 50kHz |
|
TOPOLOGY |
AB |
AB |
H |
|
INPUT |
XLR & 1/4” TRS |
XLR & 1/4” TRS |
XLR & 1/4” TRS |
|
OUTPUT |
5 WAY BINDING POST & SPEAKON OR SPEAKONTM |
5 WAY BINDING POST & SPEAKON OR SPEAKONTM |
5 WAY BINDING POST & SPEAKON OR SPEAKONTM |
|
COOLING |
VARIABLE SPEED FAN |
VARIABLE SPEED FAN |
VARIABLE SPEED FAN |
|
WEIGHT (GROSS) |
23kg / 50.6lbs |
25kg / 55lbs |
29.5kg/65lbs |
|
DIMENSIONS (H x W x D) mm |
133 x 483 x 355mm |
133 x 483 x 355mm |
133 x 483 x 355 |
For more information visit www.wharfedalepro.com
