Wharfedale Mixers

EZ Series

EZ M16x2 RRP$149

EZ-m 16x2 mini mixer is the solution for those seeking high quality, low-cost ultra-compact audio mixers for small studio and live applications. With 16-channel model available to suit a variety of applications, from desktop recording and AV production, to smaller live gigs, EZ-m 16x2 Mixer offer no-nonsense mixing platforms- anywhere quality sound is required.

The layout of controls is intelligent and makes sense, so first time users can be up and mixing in no time. Features like CD and line-level I/O, accurate 4-segment meters-as well 1/8" and 1/4" headphone outputs- provided added mix and monitor flexibility. As your audio setup expands, the EZ-m 10x2 Series continue to offer incredible utility as sub and monitor mixes.

SPECIFICATIONS

MODEL EZ-M 16x2
FREQUENCY RESPONSE 20Hz-20kHz +0/-1dB
THD+N <0.01% @ +15dBu
HUM AND NOISE -127dB Mic Pre Equivalent Input Noise
Maximum Input Level
Mic In +10dBu
Line In +20dBu
2TK In +20dBu
AC Power Options AC100V/120V/230V/240V, 50 Hz/60Hz
Dimensions (HxWxD) mm 311mm x 77mm x2 26mm
inches 12.24" x 3.03" x 3.16"inches
Weight kg 1.81kg
lbs 3.98 lbs
MAXIMUM OUTPUT LEVEL +22dBu over 130mw (headphone) @ 32 ohms
MASTER EQ
HI EQ (+/- 15dB) 12kHz Shelving
LOW EQ (+/_15dB) 80Hz Shelving
MONO INPUT CHANNEL GAIN
50dB Variable (-60~-10dB)
(-40dB~+10dB)
LEVEL METERS 4-Segment LEDx2 (output of '+4dBu = MAIN L/R
Clip Indicator Turns on approx +16dBu

EZ M20 x 2 FX RRP $279

Features:

- 4 mono mic/lone inputs with 3-band eq
- 4 stereo inputs
- clip LEDs on mic/line channels
- 2-track stereo inputs and outputs
- Convenient 1/8” stereo jacks for 2tk in, 2tk out and phones
- switchable 48v global phantom power
- built-in 16-preset digital effects unit

Wharfedale R Series Mixers

The R Series of mixers from Wharfedale Professional are designed to offer a superior quality audio performance in an easy to use, great value package. The quality of the R Series is such it can be used in a variety of professional application.

R200 RRP$249

4 balanced/unbalanced mono line inputs
4 low noise, high headroom XLR mic inputs
2 pairs of balanced/unbalanced stereo line input
48V phantom power
3 band EQ in each input channel (12KHz, 2.5KHz, 80Hz)
75Hz, 18dB/octave low cut filter on channels 1-4
EFX to Main and Control room switch
Peak LED's on mono channel
One aux send and one effect send
Separate main mix, control room and headphone outputs
2 track inputs assignable to main mix, control room/headphone outputs
Highly accurate 10 segment bargraph meters
High quality 60mm fader on master output
19" Rack Mounting kit included

The R200 features four low noise, high headroom Low Z mic inputs for use with balanced or low impedance microphones or low level external equipment with XLR connectors. The four balanced / unbalanced high impedance mono line inputs for use with high level signals with 1/4" phone plug connectors. The R200 stereo channel features two balanced line level inputs with 1/4" jacks for left and right signals.

SPECIFICATIONS

MODEL R-200
INPUT IMPEDANCE
Mic in 3 kilohms
Channel input 20 kilohms
Stereo input 20 kilohms
All other inputs 10 kilohms or greater
Tape out 10 kilohms
All other outputs 100 ohms
Weight
kg 4.4KG
MASTER EQ
HI EQ +/-15dB @12kHz
MID EQ +/-15dB @2.5kHz
LOW EQ +/-15dB @80Hz
MAIN MIX NOISE 20Hz-20kHz bandwidth,1/4"Main out,channels 1-4 Trim@ unity gain, channel EQs flat, all channels assigned to Main Mix,channels 1 and 3 pan left, 2 and 4 pan right
Main mix fader down, channel faders down -100dBu
Main mix fader unity, channel faders down -90dBu
Main mix fader @ unity, channel faders @ unity -90dBu
TOTAL HARMONIC DISTORTION (THD) 1KHZ @ +14dBu, 20Hz-20kHz
Mic in to Main out 0.0025%
ATTENUATION (CROSSTALK) 1kHz relative to 0dBu, 20Hz-20kHz bandwidth, line in, 1/4" ±Main out, Trim @ unity
Main fader down -85dBu
Channel VR minimum -70dBu
MAXIMUM LEVELS
Mic in +4dBu
Tape in +13dBu
All other inputs +25dBu
Main Mix XLR out +22dBu
All other outputs +22dBu
POWER CONSUMPTION 25 watts
EUROPE 230VAC-50Hz
JAPAN 100VAC-60Hz
UK 240VAC-50Hz
USA 115VAC-60Hz

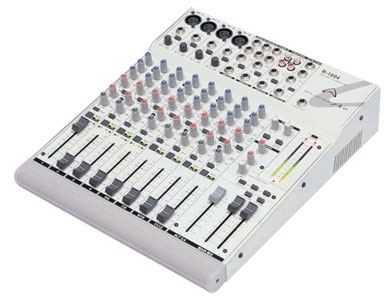

R1604 RRP$419

The R1604 features 4 low noise, high headroom low impedance mic inputs for use with balanced or low impedance microphones or external equipment with XLR connectors. It has four balanced/unbalanced high impedance mono line inputs for use with high level signals with phoe plug connectors. The Stereo Input channels on the R1604 features two balanced line level inputs with 1/4" jack sockets for left and right signals.

Features:

# 4 balanced/unbalanced mono line input (R1604)
# 4 low noise, high headroom XLR mic inputs
# 4 pairs of balanced/unbalanced stereo line inputs
# 48V global phantom power
# 3 band EQ in each input channel (12KHz, 2.5KHz, 80Hz)
# 75Hz, 18dB/octave low cut filter on channels 1-4
# PFL/SOLO and Mute/ALT 3-4 on all channels
# ALT 3-4 extra stereo bus & 2 stereo EFX return
# EFX to Main, ALT 3-4 and AUX 1 switch
# Balanced inputs and outputs
# Peak and signal LED's on mono channel
# Two AUX send, Pre and Post fader switch on AUX 1
# Separate main mix, control room and headphone outputs
# 2 track inputs assignable to main mix, control room/headphone outputs
# Highly accurate 10 segment Bargraph meters
# High quality 60mm faders
# 19" Rack Mounting kit included

SPECIFICATIONS:

MODEL R-1604
HUM AND NOISE -127dB Equivalent Input Noise
(Average,Rs=150) -95dB Residual Noise (MIX L / R,ALT 3~4,AUX SEND 1~2,CTRL ROOM)
Master Fader at Nominal level and all Channel Assign Switch OFF
Dimensions (HxWxD)
mm 80.3 x 307 x 389 mm
Weight
kg 5.9kg
lbs 13.0 lbs
MAXIMUM OUTPUT LEVEL +22dB(MIX L / R,ALT 3~4) @600 ohm
(0.5% T.H.D at 1kHz) +22dB(AUX SEND1~2) @600 ohm
+22dB(INSERT) @40k ohm
+22dB(CTRL ROOM) @600 ohm
Over 100mW (Headphone) @40 ohm
MASTER EQ Turnover / rollover frequency:located 3dB below the point of maximum amplification and attenuation
HI EQ (+ / -15dB) 12kHz Shelving
MID EQ (+ / -15dB) 2.5kHz Shelving
LOW EQ (+ / - 15dB) 80Hz Shelving
POWER CONSUMPTION AC 100V / 120V / 230V / 240V ,50~60Hz
TOTAL HARMONIC DISTORTION (THD) 0.0025% @+14dB 20Hz~20kHz
(MIX L / R,ALT 3~4,AUX SEND 1~2,CTRL ROOM) @600 ohm
MAXIMUM LEVELS
Mic in +4dBu
Tape in +13dBu
All other inputs +25dBu
MAXIMUM VOLTAGE GAIN 72dB MIC IN TO MIX L / R,ALT 3~4
72dB MIC IN TO AUX 1
72dB MIC IN TO AUX 2(POST),EFX
74dB MIC IN TO CONTROL ROOM L / R
72dB MIC IN TO REC L / R
54dB LINE IN TO MIX L / R,ALT 3~4
58dB LINE IN TO AUX 1
58dB LINE IN TO AUX 2(POST)
60dB LINE IN TO CONTRAL ROOM L / R
22dB ST IN TO MIX L / R,ALT 3~4
20dB AUX RETURN L / R IN TO MIX L / R
16dB TAPE IN TO MIX L / R
INTERFERENCE (CROSSTALK) at 1kHz
Main Fader Down -85dBu
Channel Alt / Mute Switch Engaged -80dBu
Channel Fader Down -70dBu
MONO INPUT CHANNEL GAIN 50dB variable (-60dB~-10dB), (-40dB~+10dB)
PEAK INDICATOR Input Channel:Turns on 3dB Under Pre-fader Signal Clip
LEVEL METERS 10-Segment LED x2 (Output of +4dB at 0dB) Main L / R
PHANTOM POWER 48VDC

R1604FX RRP$529

R1604 FX- R Series with Digital Effects

The R1604FX offers 4 mono, balanced mic/line input channels and four stereo input channels with 3 band equalization on each channel.

Features:

* 15 preset digital effects including Delay, Reverb, Chorus and Flange
* 4 low noise, high headroom XLR mic Inputs (R1604FX)
* 8 low noise, high headroom XLR mic Inputs (R2004FX)
* 4 pairs of balanced/unbalanced mono line inputs
* 48V global phantom power
* 3 band EQ in each input channel
* 75Hz, 18dB/octave low cut filter on mic channels
* ALT 3-4 extra stereo bus
* 2 stereo EFX return
* EFX to Main, ALT 3-4 and AUX1 switch
* Balanced inputs and outputs
* Peak and signal LED's on mono channel
* Two AUX send, Pre and Post fader switch on AUX1
* Separate main mix, control room and headphone outputs
* 2 track inputs with separate level control and assignable to main mix, control room and headphone outputs
* Highly accurate, 10 segment bargraph meters
* High quality 60mm faders
* 19" rack mounting kit included

SPECIFICATIONS:

MODEL R-1604FX
HUM AND NOISE -127dB Equivalent Input Noise
(Average,Rs=150) -95dB Residual Noise (MIX L / R,ALT 3~4,AUX,EFX,CTRL ROOM)
Master Fader at Nominal level and all Channel Assign Switch off
Dimensions (HxWxD)
mm 81.6 x 309 x 346 mm
inches 3.2 x 12.1 x 13.6 inches
Weight
kg 6kg
lbs 13.2lbs
MAXIMUM OUTPUT LEVEL +22dB(MIX L / R,ALT 3~4) @600 ohm
(0.5% T.H.D at 1kHz) +22dB(AUX,EFX SEND) @600 ohm
+22dB(INSERT) @40k ohm
+22dB(CTRL ROOM) @600 ohm
Over 130mW (Headphone) @40 ohm
MASTER EQ
HI EQ (+ / -15dB) 12kHz Shelving
MID EQ (+ / -15dB) 2.5kHz Shelving
LOW EQ (+ / - 15dB) 80Hz Shelving
TOTAL HARMONIC DISTORTION (THD) 0.0025% @+14dB 20Hz~20kHz
(MIX L / R,ALT 3~4,AUX,EFX,CTRL ROOM) @600 ohm
MAXIMUM LEVELS
Mic in +4dBu
Tape in +13dBu
All other inputs +25dBu
MAXIMUM VOLTAGE GAIN 72dB MIC IN TO MIX L / R,ALT 3~4
72dB MIC IN TO AUX 1
72dB MIC IN TO AUX 2(POST),EFX
74dB MIC IN TO CONTROL ROOM L / R
72dB MIC IN TO REC L / R
54dB LINE IN TO MIX L / R,ALT 3~4
58dB LINE IN TO AUX 1
58dB LINE IN TO AUX 2(POST)
60dB LINE IN TO CONTRAL ROOM L / R
22dB ST IN TO MIX L / R,ALT 3~4
20dB AUX RETURN L / R IN TO MIX L / R
16dB TAPE IN TO MIX L / R
INTERFERENCE (CROSSTALK) at 1kHz
Main Fader Down -85dBu
Channel Alt / Mute Switch Engaged -80dBu
Channel Fader Down -70dBu
MONO INPUT CHANNEL GAIN 50dB variable (-60dB~-10dB), (-40dB~+10dB)
PEAK INDICATOR Input Channel:Turns on 3dB Under Pre-fader Signal Clip
LEVEL METERS 10-Segment LED x2 (Output of +4dB at 0dB) Main L / R
PHANTOM POWER 48V
EFFECTS PRESET (1) Delay 1 (2) Delay 2 (3) Room 1 (4) Room 2 (5) Room 3 (6) Hall 1 (7) Hall 2 (8)Chorus 1 (9)Chorus 2 (10) Chorus 3 (11) Plate Reverb 1 (12) Plate Reverb 2 (13) Plate Reverb 3 (14)Rotary speaker (15)Flange (16) Bypass

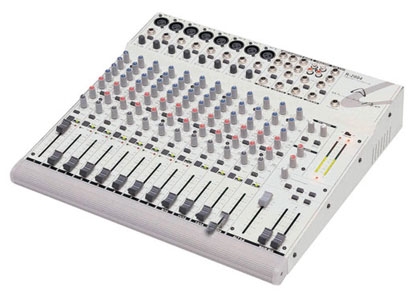

R2004 $579

R2004

The R2004 features 8 low noise, high headroom low impedance mic inputs for use with balanced or low impedance microphones or external equipment with XLR connectors. The R2004 has eight balanced/unbalanced high impedance mono line inputs for use with high level signals with phone plug connectors. The Stereo Input channels on the R2004 features two balanced line level inputs with 1/4" jack sockets for left and right signals.

Features:

# 8 balanced/unbalanced mono line input
# 8 low noise, high headroom XLR mic inputs
# 4 pairs of balanced/unbalanced stereo line inputs
# 48V global phantom power
# 3 band EQ in each input channel (12KHz, 2.5KHz, 80Hz)
# 75Hz, 18dB/octave low cut filter on channels 1-4
# PFL/SOLO and Mute/ALT 3-4 on all channels
# ALT 3-4 extra stereo bus ¢D 2 stereo EFX return
# EFX to Main, ALT 3-4 and AUX 1 switch
# Balanced inputs and outputs
# Peak and signal LED's on mono channel
# Two AUX send, Pre and Post fader switch on AUX 1
# Separate main mix, control room and headphone outputs
# 2 track inputs assignable to main mix, control room/headphone outputs
# Highly accurate 10 segment Bargraph meters
# High quality 60mm faders
# 19" Rack Mounting kit included

SPECIFICATIONS:

MODEL R-2004
HUM AND NOISE -127dB Equivalent Input Noise
(Average,Rs=150) -95dB Residual Noise (MIX L / R,ALT 3~4,AUX SEND 1~2,CTRL ROOM)
Master Fader at Nominal level and all Channel Assign Switch OFF
Dimensions (HxWxD)
mm 80.3x416x431 mm
Weight
kg 7.3kg
lbs 16.1 lbs
MAXIMUM OUTPUT LEVEL +22dB(MIX L / R,ALT 3~4) @600 ohm
(0.5% T.H.D at 1kHz) +22dB(AUX SEND1~2) @600 ohm
+22dB(INSERT) @40k ohm
+22dB(CTRL ROOM) @600 ohm
Over 100mW (Headphone) @40 ohm
MASTER EQ Turnover / rollover frequency:located 3dB below the point of maximum amplification and attenuation
HI EQ (+ / -15dB) 12kHz Shelving
MID EQ (+ / -15dB) 100Hz~8kHz (EQ for Frequency Variable) Peaking
LOW EQ (+ / - 15dB) 80Hz Shelving
POWER CONSUMPTION AC 100V / 120V / 230V / 240V ,50~60Hz
MAXIMUM LEVELS
Mic in +4dBu
Tape in +13dBu
All other inputs +25dBu
MAXIMUM VOLTAGE GAIN 72dB MIC IN TO MIX L / R,ALT 3~4
72dB MIC IN TO AUX 1
72dB MIC IN TO AUX 2(POST),EFX
74dB MIC IN TO CONTROL ROOM L / R
72dB MIC IN TO REC L / R
54dB LINE IN TO MIX L / R,ALT 3~4
58dB LINE IN TO AUX 1
58dB LINE IN TO AUX 2(POST)
60dB LINE IN TO CONTRAL ROOM L / R
22dB ST IN TO MIX L / R,ALT 3~4
20dB AUX RETURN L / R IN TO MIX L / R
16dB TAPE IN TO MIX L / R
INTERFERENCE (CROSSTALK) at 1kHz
Main Fader Down -85dBu
Channel Alt / Mute Switch Engaged -80dBu
Channel Fader Down -70dBu
MONO INPUT CHANNEL GAIN 50dB variable (-60dB~-10dB), (-40dB~+10dB)
PEAK INDICATOR Input Channel:Turns on 3dB Under Pre-fader Signal Clip
LEVEL METERS 10-Segment LED x2 (Output of +4dB at 0dB) Main L / R
PHANTOM POWER 48VDC

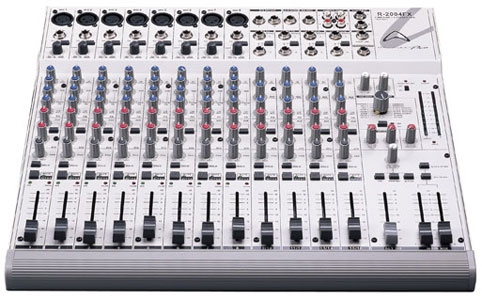

R2004FX $679

R2004 FX- R Series with Digital Effects

The R2004FX offers 8 mono, balanced mic/line input channels with with 3 Band equalization and a semi- parametric mid range control plus 3 Band equalization on each of the four stereo input channels. The R2004FX also provides 8 TRS ¼" channel Insert jacks for the mono channels which allow the connection of external serial signal processing devices.

Features:

* 15 preset digital effects including Delay, Reverb, Chorus and Flange
* 8 low noise, high headroom XLR mic Inputs
* 4 pairs of balanced/unbalanced mono line inputs
* 48V global phantom power
* 3 band EQ in each input channel
* 75Hz, 18dB/octave low cut filter on mic channels
* ALT 3-4 extra stereo bus
* 2 stereo EFX return
* EFX to Main, ALT 3-4 and AUX1 switch
* Balanced inputs and outputs
* Peak and signal LED's on mono channel
* Two AUX send, Pre and Post fader switch on AUX1
* Separate main mix, control room and headphone outputs
* 2 track inputs with separate level control and assignable to main mix, control room and headphone outputs
* Highly accurate, 10 segment bargraph meters
* High quality 60mm faders
* 19" rack mounting kit included

SPECIFICATIONS:

MODEL R-2004FX
HUM AND NOISE -127dB Equivalent Input Noise
(Average,Rs=150) -95dB Residual Noise (MIX L / R,ALT 3~4,AUX,EFX,CTRL ROOM)
Master Fader at Nominal level and all Channel Assign Switch off
Dimensions (HxWxD)
mm 81.6 x 418.8 x 399.7 mm
inches 3.2 x 16.5 x 15.7 inches
Weight
kg 7.5kg
lbs 16.5lbs
MAXIMUM OUTPUT LEVEL +22dB(MIX L / R,ALT 3~4) @600 ohm
(0.5% T.H.D at 1kHz) +22dB(AUX,EFX SEND) @600 ohm
+22dB(INSERT) @40k ohm
+22dB(CTRL ROOM) @600 ohm
Over 130mW (Headphone) @40 ohm
MASTER EQ
HI EQ (+ / -15dB) 12kHz Shelving
MID EQ (+ / -15dB) 100Hz~8kHz (EQ for Frequency Variable) Peaking
LOW EQ (+ / - 15dB) 80Hz Shelving
TOTAL HARMONIC DISTORTION (THD) 0.0025% @+14dB 20Hz~20kHz
(MIX L / R,ALT 3~4,AUX,EFX,CTRL ROOM) @600 ohm
MAXIMUM LEVELS
Mic in +4dBu
Tape in +13dBu
All other inputs +25dBu
MAXIMUM VOLTAGE GAIN 72dB MIC IN TO MIX L / R,ALT 3~4
72dB MIC IN TO AUX 1
72dB MIC IN TO AUX 2(POST),EFX
74dB MIC IN TO CONTROL ROOM L / R
72dB MIC IN TO REC L / R
54dB LINE IN TO MIX L / R,ALT 3~4
58dB LINE IN TO AUX 1
58dB LINE IN TO AUX 2(POST)
60dB LINE IN TO CONTRAL ROOM L / R
22dB ST IN TO MIX L / R,ALT 3~4
20dB AUX RETURN L / R IN TO MIX L / R
16dB TAPE IN TO MIX L / R
INTERFERENCE (CROSSTALK) at 1kHz
Main Fader Down -85dBu
Channel Alt / Mute Switch Engaged -80dBu
Channel Fader Down -70dBu
MONO INPUT CHANNEL GAIN 50dB variable (-60dB~-10dB), (-40dB~+10dB)
PEAK INDICATOR Input Channel:Turns on 3dB Under Pre-fader Signal Clip
LEVEL METERS 10-Segment LED x2 (Output of +4dB at 0dB) Main L / R
PHANTOM POWER 48V
EFFECTS PRESET (1) Delay 1 (2) Delay 2 (3) Room 1 (4) Room 2 (5) Room 3 (6) Hall 1 (7) Hall 2 (8)Chorus 1 (9)Chorus 2 (10) Chorus 3 (11) Plate Reverb 1 (12) Plate Reverb 2 (13) Plate Reverb 3 (14)Rotary speaker (15)Flange (16) Bypass

« back to products

Wharfedale Mixers

EZ Series EZ M16x2 RRP$149

SPECIFICATIONS

EZ M20 x 2 FX RRP $279

Features:

Wharfedale R Series Mixers

R200 RRP$249

SPECIFICATIONS

R1604 RRP$419

Features:

SPECIFICATIONS:

R1604FX RRP$529

Features:

SPECIFICATIONS:

R2004 $579

Features:

SPECIFICATIONS:

R2004FX $679

Features:

SPECIFICATIONS:

EZ Series

EZ M16x2 RRP$149
