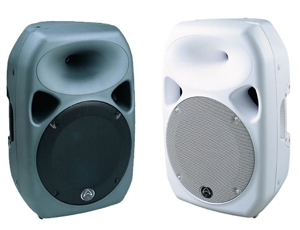

TITAN™ ACTIVE
Built around the best components, including a titanium compression driver and heavy-duty cast-frame woofer, TITAN™ ACTIVE delivers the high level, even dispersion and sonic integrity usually associated with much more expensive speakers. Designed to perform in portable and fixed installation applications alike, the TITAN™ ACTIVE, with an ultra-light-weight composite enclosure, offers a range of multiple mounting options, the optional tripod floor stands, the optional wall mount, the unique dual-head array adapter or even on its side as a floor monitor.
Power, compact, lightweight and affordable, the TITAN™ ACTIVE makes the ideal choice for outdoor gigs and festival speakers applications. No matter where you're gigging, the TITAN™ ACTIVE is the ultimate live performance speakers.
Enclosure Features:
-
· Lightweight enclosure with rubberized transport handles for easy portability
-
Rugged Polypropylene injection moulded cabinets with rubberized over-molded handles
-
Trapezoidal shape allows for vertical arrays as well as horizontal stage monitor applications
-
Protective metal grille
-
Multiple M8 rigging points including wall mount bracket inserts
-
Power 'ON' LED indicators inside of the high frequency horn throat and on the back panel
-
Standard 35mm integral speaker stand socket and bottom mounted bracket inserts
Applications:
-
Stage Monitoring, Mobile sound and Permanent sound installation
-
Primary Target: Musician, Event Organizer, Club owner, Roadies
-
Secondary Target: Clubs, Bars, and Concert Attendees, Pastor, Church
Ultra-light weight for maximum portability
Designed to work as a floor monitor too
Moisture-proof driver for wherever you play
Titan Active 8" 2-way Bi-Amplified Speaker
RRP $599
· 2-way, active bi-amplified speaker system
· Custom 8", Low Frequency driver and Titanium High Frequency compression driver provide exceptional clarity, high power handling capability and maximum efficiency
· State-of-the-art, high efficiency switch mode power supply with a class D low frequency power amplifier and a class A/B or class D high frequency amplifier
· Low frequency power (Class D) 150W RMS, 300W PEAK
· High frequency power (Class A/B) 30W RMS, 60W PEAK
· Active signal limiting system with LED indicator on rear panel
· Built in 2 channel mixer with microphone and line level inputs Balanced XLR line output for connections to subwoofers or daisy-chaining units together
· Low distortion, high power handling, water resistant woofer
· Professional high frequency compression driver with titanium diaphragm
· XLR and TRS line inputs via convenient 'combo' jacks
· Two band master EQ controls
· Full Protection system: DC, overload, short circuit, thermal, On / Off mute and LF / HF Limiters
Our unique EWG™ design is the result of intensive computer modeling of natural acoustic wave propagation. To provide more acoustically transparent high-frequency pattern control, hard edges, corners, and parallel surfaces were eliminated from the design while still enabling 90 x 60 degree high frequency coverage. The smoother, more "organic" shape of the EWG™ design reduces high frequency distortion and diffraction eliminating acoustic artifacts found in other horn design technologies. The result is smoother frequency response, greater driver efficiency, and improved vocal and instrument reproduction.
Proprietary 90° x 60° Elliptical Wave Guide™ horn design
Power on indicator in horn throat and on rear panel
Titan™ 8 ACTIVE DESCRIPTIONS
Amplifier:
The Titan™ 8 Active is a self-powered, two-way professional loudspeaker system incorporating a high grade Bi-Amp Class D and Class A/B Amplifiers. The model also has intelligent electronics, such as full protection system: DC, overload, short circuit, thermal, On / Off mute and LF / HF Limiters, which protects the system from overload and allows reliable operation right up to the power limit.
The bottom of the Titan™ 8 ACTIVE provides a convenient built in pole mount socket for easy mounting on a standard 35mm diameter speaker stand pole.
The speaker stand receptacle features a locking screw to ensure stability.
Ten M6 threaded rigging points are provided for a variety of safe flying configurations with four of these inserts available, bottom-mounted, in an OmniMount® 30.0 bracket footprint.
The Titan™ 8 Active also features a switchable microhpone/line level input with adjustable gain, allowing a dynamic microphone to be used without a mixer for simple presentations.
SPECIFICATIONS
MODEL TITAN 8 ACTIVE
GENERAL INFO
System type Active 8" 2-way Bi-Amplified
Frequency response +/- 3db 70Hz-20kHz
HF SECTION
Hf type Titanium Compression Driver
Horn dispersion (H x V) 90° x 60°
Hf exit size mm / inches 30mm / 1.2"
PHYSICAL FEATURES
Enclosure Material Injection Moulded Polypropylene
Enclosure Colour Grey or White or Black
Size (mm/inches) 205mm / 8"
AMPLIFIER POWER
Power On Protection Power switch on / off mute
Thermal Protection Amplifier shutdown, auto reset
Low Line Voltage Shut Down 60% Nominal line voltage
Driver Protection Independent LF and HF limiters
DC Protection Yes
Short Protection Yes
Dimensions (HxWxD)
mm 396mm x 266mm x 221mm
inches 15.59" x 10.47" x 8.7"
Impedance 4 Ω
Clip Limiter Turns on approx 150W output
Limiter Indicator Red LED
Power Indicator Blue LED
AC Power details
Power Supply High Efficiency Switching
Mode Power Supply
AC Power Options AC100~120V / 220~240V, 50 / 60Hz
Power On Indicator LED
Rigging / Bracket / 8 M6 threaded inserts including 4
Mounting Options M6 threaded inserts on bottom in OmniMount 30.0-type footprint
Optional wall-mount bracket
Input A - type Switchable balanced mic or line level input
Input Sensitivity Mic: -36dBu (-38.2dBv or 12.28mVrms)
Line: +4dBu (1.78dBv or 1.228Vrms)
Maximum Input Level +22dBu
Input Connector XLR - 1/ 4" Combo jack
Input Impedance Balanced: 20k ohms
Input B - type
Maximum Input Level +22dBu
Input Connectors Combo jack: 1/4" - XLR
Bass Response Optimizer
Subsonic Filter 30Hz, Second-order filter
Amplifiers
Low-Frequency (Class D) Rated 150W RMS, 300W Peak
High- Frequency (Class A/B) Rated 30W RMS, 60W Peak
Electronic Crossover 24dB/octave Linkwitz-Riley
Crossover Frequency 2.4kHz
DIMENSIONS & WEIGHT
Net weight ( kg / lbs ) 5.7kg / 12.54lbs
Gross weight ( kg / lbs ) 7.70kg /16.94lbs
Titan Active 12" 2-way Bi-Amplified Speaker RRP $849
Key Features
· 2-way, active bi-amplified speaker system
· Custom 12" Low Frequency driver and Titanium High Frequency compression driver provide exceptional clarity, high power handling capability and maximum efficiency
· State-of-the-art, high efficiency switch mode power supply with a class D low frequency power amplifier and a class A/B high frequency amplifier
· Low frequency power (Class D) 250W RMS, 500W PEAK
· High frequency power (Class A/B) 50W RMS, 100W PEAK
· Active signal limiting system with LED indicator on rear panel
· Built in 2 channel mixer with microphone and line level inputs Balanced XLR line output for for connections to subwoofers or daisy-chaining units together
· Switchable Bass Response Optimizer (BRO™) circuit
· Low distortion, high power handling, water resistant 12 inch woofer
· Professional high frequency compression driver with 2" titanium diaphragm
· XLR and TRS line inputs via convenient 'combo' jacks
· Two band master EQ controls
· Full Protection system: DC, overload, short circuit, thermal, On / Off mute and LF / HF Limiters
Our unique EWG™ design is the result of intensive computer modeling of natural acoustic wave propagation. To provide more acoustically transparent high-frequency pattern control, hard edges, corners, and parallel surfaces were eliminated from the design while still enabling 90 x 60 degree high frequency coverage. The smoother, more "organic" shape of the EWG™ design reduces high frequency distortion and diffraction eliminating acoustic artifacts found in other horn design technologies. The result is smoother frequency response, greater driver efficiency, and improved vocal and instrument reproduction.
Titan™ 12 ACTIVE DESCRIPTIONS
Amplifier
The Titan™ 12 ACTIVE features a state-of-the-art Class D low frequency amplifier design. Class D amplifiers are known for their extended efficiency, low heat dissipation and light weight compared to other amplifier classifications. Class D technology allows for unparalleled audio quality in a lightweight, powered speaker system. High frequency power is provided by a high quality, low distortion and highly efficient Class A/B amplifier.
The bottom of the Titan™ 12 ACTIVE provides a convenient built in polemount socket for easy mounting on a standard 35mm diameter speaker stand pole.
* The speaker stand receptacle features a locking screw to ensure stability.
* Ten M8 threaded rigging points are provided for a variety of safe flying.
configurations with four of these inserts available, bottom-mounted, in an OmniMount® 60.0 bracket footprint.
Mixer and Controls
The Titan™ 12 ACTIVE provides basic mixing functions with a variety of input options. Two inputs with separate level controls and a common equalization section allow for overall balance and tonal characteristic control. Easy interfacing to external mixers and processors provide for easy expansion to larger, more sophisticated systems.
Optional wall-mount bracket for installation
* Rigging inserts for several suspension options
Bass Response Optimizer
Designed for flexibility and ease of use, the Titan™ 12 ACTIVE also features a unique BASS RESPONSE OPTIMIZER, or "BRO™ circuit" that works like the "loudness" controls on vintage stereo systems. With the "BRO"™ circuit engaged, low frequency response increases as the overall volume is decreased providing for outstanding low frequency response at lower volume levels.
Optional TITAN™ TOUR BAG - Ballistic nylon zippered carry bag protects your Titan™ 12
ACTIVE
SPECIFICATIONS
MODEL TITAN 12 ACTIVE
GENERAL INFO
System type Active 12" 2-way Bi-Amplified system
Frequency response +/- 3db 55-20kHz
LF DRIVER
Lf driver size mm / inches 305mm / 12" 4 ohm
Lf voice coil size 64.26mm / 2.5"
HF SECTION
Hf voice coil size 51mm / 2" 8 ohm
Hf type Compression Driver
Hf diaphragm material Titanium
Horn dispersion (H x V) 90 x 60
Hf exit size mm / inches 25mm / 1"
Hf horn shape EWG™ - Elliptical Waveguide
CROSSOVER SECTION
Crossover Frequency / Filter 2.3kHz, 24dB per octave Linkwitz-Riley
Hf driver protection Independent LF and HF limiters
PHYSICAL FEATURES
Finish Grey or white
Handle quantity 2 carry handles (one on each side)
Suspension points (10) M8 points for safe flown applications, (4) M8 inserts on bottom in OmniMount® 60.0-type footprint
Stand adapter - BOTTOM Speaker pole-mount receptacle with lock screw, Optional wall-mount bracket
Enclosure type Molded Polypropylene
AMPLIFIER POWER
Continous RMS LF 250W, HF 50W
Peak (Wats) LF 500W, HF 100W
ProtectionType Power switch on / off mute, Thermal Amplifier shutdown/auto reset, Low line voltage shut down at 60% nominal line voltage, DC Protection, Short protection, Clip limiter turns on approx at 250W with red LED indicator
Power on indicator LED
INPUT SENSITIVITY
Mic -36dBu (-38.2dBv or 12.28mVrms)
Rca 0dBu (-2.2dBv or 0.775Vrms)
Line +4dBu (1.78dBv or 1.228Vrms)
Maximum Input Level +22dBu
CONNECTORS
Input connectors A Switchable balanced mic or line level input XLR / ¼" Combo jack
Input connectors B Line level combo jack: 1/4" -XLR / Summed dual RCA jacks
Line output type Switchable LOOP / MIX Balanced Male XLR connector, Balanced: 1k ohm - Unbalanced: 500 ohm, +4dBu (1.78dBv or 1.228Vrms)
INPUT IMPEDANCE
Line input A 20kΩ - Unbalanced: 10kΩ Maximum Input Level +22dBu
Line input B 20kΩ - Unbalanced: 10kΩ Maximum Input Level +22dBu+BV22
Main eq High (±10dB) 10kHz Shelving
Low (±10dB) 100Hz Shelving, Bass Response Optimizer ("BRO"™) circuit '+5dB at 60Hz, Subsonic Filter 30Hz, Second-order filter
DIMENSIONS & WEIGHT
Height ( mm / ins ) 556mm / 21.88"
Width Front / Rear / mm / ins 384mm / 15.11"-180mm / 7.1"
Depth ( mm / ins ) 312mm / 12.28"
Net weight ( kg / lbs ) 13.3kg / 28.16lbs
Gross weight ( kg / lbs ) 14.8kg / 32.56lbs
Titan Active 15" 2-way Bi-Amplified Speaker RRP $1199
·
2-way, active bi-amplified speaker system
· Custom 15", Low Frequency driver and Titanium High Frequency compression driver provide exceptional clarity, high power handling capability and maximum efficiency
· State-of-the-art, high efficiency switch mode power supply with a class D low frequency power amplifier and a class A/B or class D high frequency amplifier
· Low frequency power (Class D) 350W RMS, 700W PEAK
· High frequency power (Class A/B) 70W RMS, 140W PEAK
· Active signal limiting system with LED indicator on rear panel
· Built in 2 channel mixer with microphone and line level inputs Balanced XLR line output for connections to subwoofers or daisy chaining units together
· Switchable Bass Response Optimizer (BRO™) circuit
· Low distortion, high power handling, water resistant woofer
· Professional high frequency compression driver with titanium diaphragm
· XLR and TRS line inputs via convenient 'combo' jacks
· Two band master EQ controls
· Full Protection system: DC, overload, short circuit, thermal, On / Off mute and LF / HF Limiters
Our unique EWG™ design is the result of intensive computer modeling of natural acoustic wave propagation. To provide more acoustically transparent high-frequency pattern control, hard edges, corners, and parallel surfaces were eliminated from the design while still enabling 90 x 60 degree high frequency coverage. The smoother, more "organic" shape of the EWG™ design reduces high frequency distortion and diffraction eliminating acoustic artifacts found in other horn design technologies. The result is smoother frequency response, greater driver efficiency, and improved vocal and instrument reproduction.
Proprietary 90° x 60° Elliptical Wave Guide™ horn design
Power on indicator in horn throat and on rear panel
Titan™ 15 ACTIVE DESCRIPTIONS
Amplifier:
The Titan™ 15 Active is a self-powered, two-way professional loudspeaker system incorporating a high grade Bi-Amp Class D and Class A/B Amplifiers. The model also has intelligent electronics, such as full protection system: DC, overload, short circuit, thermal, On / Off mute and LF / HF Limiters, which protects the system from overload and allows reliable operation right up to the power limit.
The bottom of the Titan™ 15 ACTIVE provides a convenient built in pole mount socket for easy mounting on a standard 35mm diameter speaker stand pole.
The speaker stand receptacle features a locking screw to ensure stability.
Ten M8 threaded rigging points are provided for a variety of safe flying
configurations with four of these inserts available, bottom-mounted, in an OmniMount® 60.0 bracket footprint.
Mixer and Controls
The Titan™ 15 ACTIVE provides basic mixing functions with a variety of input options. Two inputs with separate level controls and a common equalization section allow for overall balance and tonal characteristic control. Easy interfacing to external mixers and processors provide for easy expansion to larger, more sophisticated systems.
SPECIFICATIONS
MODEL TITAN 15 ACTIVE
GENERAL INFO
System type Active 15" 2-way Bi-Amplified
Frequency response +/- 3db 50-20kHz
HF SECTION
Hf type Titanium Compression Driver
Horn dispersion (H x V) 90° x 60°
Hf exit size mm / inches 25mm / 1"
PHYSICAL FEATURES
Enclosure Material Injection Moulded Polypropylene
Enclosure Colour Grey or White or Black
Size (mm/inches) 381mm / 15"
IN / OUT PANEL (speaker Level)
Input connector XLR - 1/ 4" Combo jack
AMPLIFIER POWER
Power On Protection Power switch on / off mute
Thermal Protection Amplifier shutdown, auto reset
Low Line Voltage Shut Down 60% Nominal line voltage
Driver Protection Independent LF and HF limiters
DC Protection Yes
Short Protection Yes
Controls High (±10dB) 10kHz Shelving
Dimensions (HxWxD)
mm 708.3mm x 477.8mm x 401.77mm
inches 27.9" x 18.8" x 15.8"
Microphone / Transmitter
Maximum Input Level +22dBu
Impedance 4 Ω
MIXER MODEL
INPUT IMPEDANCE Balanced: 20k ohms Unbalanced: 10k ohms
Clip Limiter Turns on approx 350W output
Limiter Indicator Red LED
Power Indicator Red LED
AC Power details
Power Supply High Efficiency Switching Mode Power Supply
AC Power Options AC100~120V / 220~240V, 50 / 60Hz
Power On Indicator LED
Rigging / Bracket / 10 M8 threaded inserts including 4
Mounting Options M8 threaded inserts on bottom in OmniMount 60.0-type footprint Pole-mount receptacle with lock screw 2 carry handles (one on each side) Optional wall-mount bracket
Impedance Balanced Balanced: 1k ohm - Unbalanced: 500 ohm
Line Output
Line Output Connector Switchable LOOP / MIX Balanced Male XLR
Input A - type Switchable balanced mic or line level input
Input Sensitivity Mic: -36dBu (-38.2dBv or 12.28mVrms)
Line: +4dBu (1.78dBv or 1.228Vrms)
Maximum Input Level +22dBu
Input Connector XLR - 1/ 4" Combo jack
Input Impedance Balanced: 20k ohms Unbalanced: 10k ohms
Input B - type Line level input
Input Sensitivity XLR - 1/4" Combo jack: 1.78dBv or 1.228Vrms
RCA: 0dBu (-2.2dBv or 0.775Vrms)
Maximum Input Level +22dBu
Input Connectors Combo jack: 1/4" - XLR / Summed dual RCA jacks
Bass Response Optimizer
("BRO"™) circuit +5dB at 60Hz
Subsonic Filter 30Hz, Second-order filter
Amplifiers
Low-Frequency (Class D) Rated 350W RMS, 700W Peak
High- Frequency (Class A/B) Rated 70W RMS, 140W Peak
Electronic Crossover 24dB/octave Linkwitz-Riley
Crossover Frequency 1.8kHz
Controls High (±10dB) 10kHz Shelving
Equalization Low (±10dB) 100Hz Shelving
DIMENSIONS & WEIGHT
Net weight ( kg / lbs ) 23.7kg / 52.67lbs
Gross weight ( kg / lbs ) 26.94kg / 59.27lbs
For more information on Wharfedale products visit www.wharfedalepro.com
